BIM Integration for Surveyors: Embedding Geospatial Data into Building Information Models

{"cover":"Professional landscape format (1536×1024) hero image with bold text overlay: 'BIM Integration for Surveyors: Embedding Geospatial Data into Building Information Models' in extra large 70pt white bold sans-serif font with dark semi-transparent background panel for contrast, centered upper-third composition. Background shows a dramatic split-scene: left half displays a 3D BIM architectural model of a multi-story building with glowing blue wireframe overlays, right half shows a satellite GIS map with coordinate grids and topographic contour lines. Both sides merge at center with data flow arrows connecting them. Color palette: deep navy blue, electric cyan, white. Editorial quality, magazine cover aesthetic, high contrast, photorealistic digital art style.","content":["Wide landscape format (1536×1024) infographic-style illustration showing three professionals — a surveyor with a total station instrument, an architect reviewing blueprints on a tablet, and a structural engineer at a laptop — gathered around a large holographic 3D BIM model floating above a table. The model shows a building with embedded geospatial coordinate markers, GNSS satellite icons above, and LiDAR point cloud data rendered in cyan and orange. Background: modern open-plan office with floor-to-ceiling windows overlooking a construction site. Color scheme: steel blue, white, amber. Clean, editorial, technical illustration style.","Detailed landscape format (1536×1024) technical diagram showing the BIM-GIS data integration pipeline: a flowchart with labeled nodes including 'Raw Survey Data', 'GNSS Georeferencing', 'LiDAR Point Cloud', 'IFC File Format', 'GIS Platform (ArcGIS GeoBIM)', and 'Federated BIM Model'. Each node connected by animated-style arrows with data packets. Left side shows a drone capturing topographic survey data over an urban landscape; right side shows a split computer screen with Autodesk Revit and Esri ArcGIS open simultaneously. Color palette: dark charcoal background, neon green data lines, white labels. Futuristic, clean, technical infographic aesthetic.","Landscape format (1536×1024) bird's-eye perspective aerial photograph of a dense urban construction site in London, overlaid with a semi-transparent digital BIM model showing building footprints, underground utilities, and boundary lines highlighted in glowing orange. A surveyor in high-visibility vest and hard hat stands in foreground holding a tablet displaying a 3D geospatial model. Surrounding buildings shown with GIS coordinate grid overlay. Sky is overcast blue-grey. Color scheme: construction orange, digital blue, white grid lines on dark map background. Photorealistic composite, editorial quality, high detail."]

Seventy-three percent of construction professionals now use Building Information Modelling in their daily workflows — up from just 10% a decade ago. [1] Yet the gap between raw survey data and a fully georeferenced, collaborative BIM model remains one of the most persistent friction points in modern construction. BIM Integration for Surveyors: Embedding Geospatial Data into Building Information Models addresses exactly that gap, showing how chartered surveyors are working alongside architects and engineers to reduce design conflicts, accelerate approvals, and deliver more accurate built outcomes.

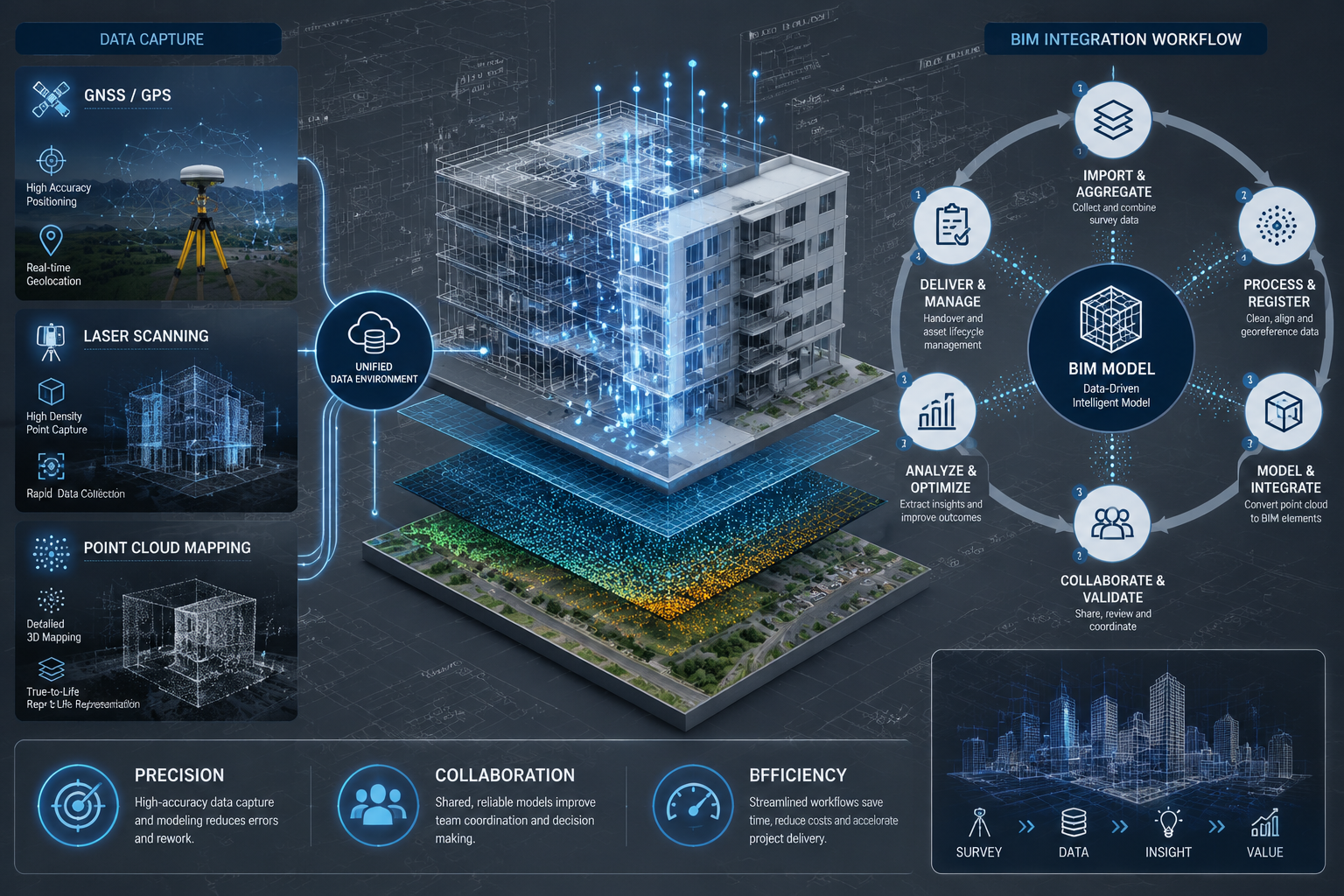

Key Takeaways

Embedding accurate geospatial data into BIM models through georeferencing with GNSS and LiDAR is the foundation of reliable, conflict-free construction workflows.
Standards such as IFC and ISO 19650 are essential for interoperability between BIM and GIS platforms, reducing costly data handoff errors.
Tools like Esri ArcGIS GeoBIM and the Esri-Autodesk partnership are making BIM-GIS integration more accessible for surveying teams in 2026.
Cloud-based BIM platforms, now used in approximately 48% of deployments, enable real-time collaboration across geographically dispersed project teams.
Surveyors who master geospatial BIM workflows position themselves as indispensable contributors from site investigation through to asset management.

Why Geospatial Data Belongs Inside the BIM Model

Building Information Modelling is often described as a digital twin of a built asset. But a BIM model without accurate location data is like a map without coordinates — internally consistent, yet disconnected from the real world. When surveyors embed geospatial data directly into BIM models, every element — from a foundation slab to a roof parapet — carries a verifiable position on the Earth's surface.

This matters for several practical reasons:

Clash detection: When structural, mechanical, and architectural models are overlaid in a common coordinate system, software can flag physical conflicts before a single brick is laid.
Regulatory compliance: Planning authorities increasingly require georeferenced submissions, particularly for large-scale or infrastructure projects.
Asset management: Facility managers rely on accurate spatial data to maintain, retrofit, or demolish structures decades after completion.
Urban planning integration: Georeferenced BIM models can be dropped into city-wide GIS datasets, supporting transport, utilities, and environmental planning.

For surveyors working across London and the wider South East, where dense urban environments make spatial accuracy critical, this capability is not a luxury — it is a professional baseline. Teams providing building surveyor services are increasingly expected to deliver data that feeds directly into BIM environments rather than producing standalone reports.

"A BIM model without accurate geospatial grounding is a design tool. A georeferenced BIM model is an infrastructure asset."

The Technical Foundation: How Surveyors Embed Geospatial Data

Georeferencing: The First and Most Critical Step

Georeferencing is the process of assigning real-world spatial coordinates to a BIM model. Without it, a model exists in a local, arbitrary coordinate system that cannot be reliably merged with GIS data, neighbouring project models, or national mapping frameworks.

Advanced surveying techniques used for georeferencing include:

Method	Key Benefit	Typical Application
GNSS (Global Navigation Satellite System)	High absolute accuracy outdoors	Site setup, control point establishment
LiDAR (Light Detection and Ranging)	Dense 3D point clouds	Existing building capture, topographic surveys
Total Station	Millimetre-level precision	Structural setting out, boundary definition
Drone photogrammetry	Rapid area coverage	Roof surveys, large sites, inaccessible areas

Research published in the ISPRS International Journal of Geo-Information confirms that using GNSS or LiDAR during data capture to embed spatial coordinates directly into BIM models is the most reliable route to seamless GIS integration. [4] Surveyors who establish a robust network of control points at the outset of a project create a spatial backbone that every subsequent model element can reference.

For complex urban projects — such as a structural survey in London where neighbouring structures, underground services, and tight site boundaries all interact — this spatial backbone is what prevents costly errors downstream.

LiDAR Point Clouds and GeoBIM Construction

One of the most significant advances in geospatial BIM integration is the use of LiDAR point clouds to reconstruct existing urban environments. Recent research proposes integrating LiDAR point clouds with as-designed BIM models to reconstruct urban scenes with high segmentation accuracy and precise positioning. [5] This approach, sometimes called GeoBIM construction, allows surveyors to capture the existing built environment in three dimensions and align it with new design models.

In practice, this means a surveyor can:

Capture a LiDAR scan of an existing building or streetscape.
Process the point cloud into a structured dataset.
Align the point cloud with a new BIM design model using shared control points.
Identify discrepancies between the as-built condition and the proposed design before construction begins.

This workflow is particularly valuable for refurbishment projects, extensions, and commercial building surveys where the existing structure must be accurately captured before any new design work proceeds.

Innovative research is also integrating BIM models into multi-session Simultaneous Localization and Mapping (SLAM) using 3D LiDAR, improving indoor mapping in GPS-denied environments such as basements, tunnels, and multi-storey car parks. [8]

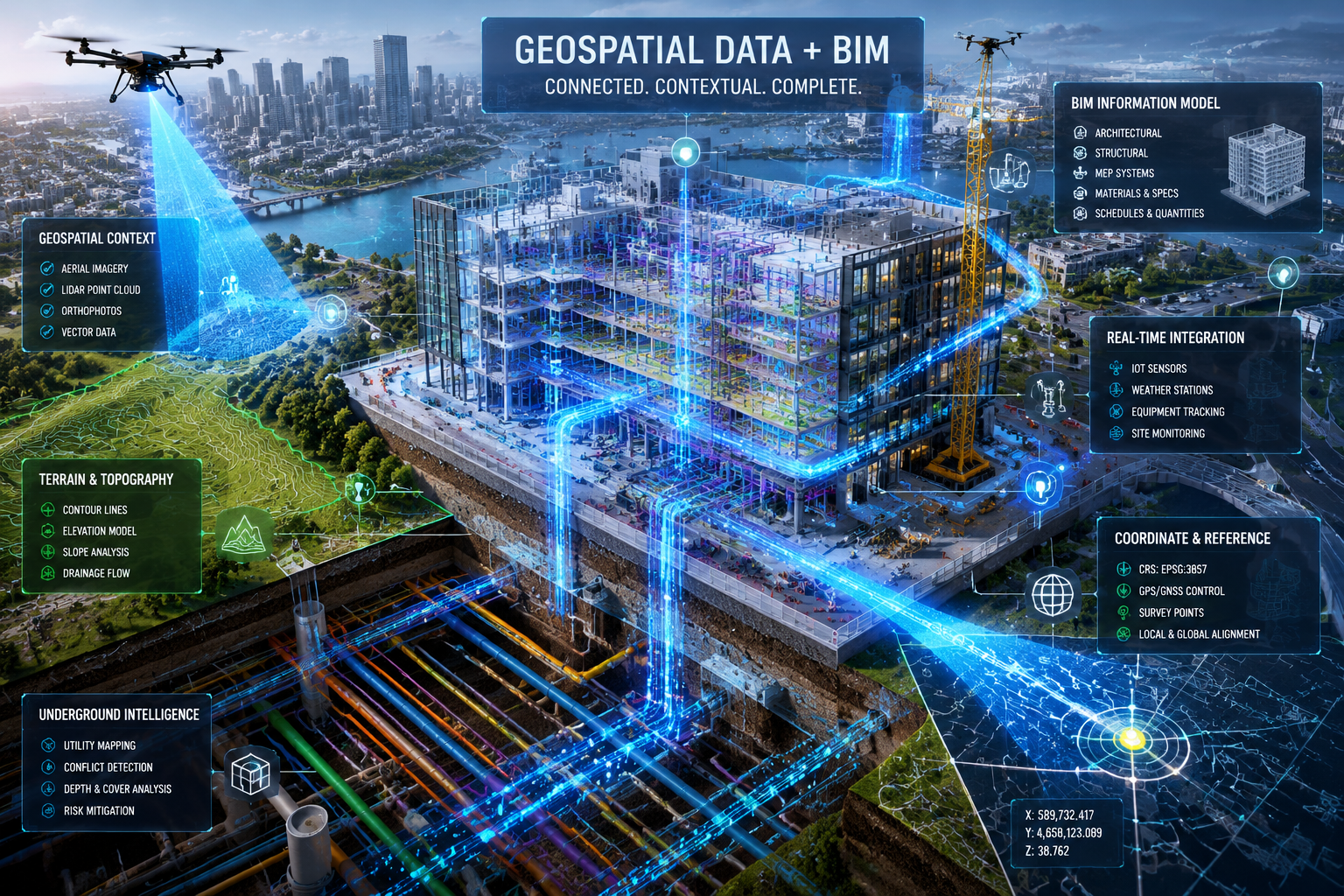

Tools, Standards, and Collaborative Workflows

Key Platforms Enabling BIM-GIS Integration

The convergence of GIS and BIM has accelerated significantly in 2026, driven by strategic partnerships and purpose-built software. Two developments stand out:

Esri ArcGIS GeoBIM creates a connected data environment that links Autodesk Construction Cloud with geospatial data, allowing project teams to visualise BIM models in a 3D geospatial context. [2] Teams can review design models against real-world geographic features — topography, flood zones, transport networks — without switching between disconnected platforms.

The Esri-Autodesk Partnership aims to unify GIS and BIM technologies, enabling architecture, engineering, and construction (AEC) professionals to collaborate more effectively across entire project lifespans. [6] The partnership focuses on sustainable and resilient infrastructure by bridging the historical gap between spatial analysis and building design.

Cloud-based collaboration is also reshaping how surveyors work. Approximately 48% of BIM deployments now use cloud platforms, enabling remote collaboration and real-time data access. [7] For surveying teams spread across multiple offices or working on projects in different regions — from chartered surveyors in Surrey to those covering Hertfordshire — cloud BIM removes the bottleneck of file transfers and version conflicts.

Interoperability Standards: IFC and ISO 19650

No discussion of BIM-GIS integration is complete without addressing data standards. Two frameworks are essential:

Industry Foundation Classes (IFC) is an open, vendor-neutral file format for sharing BIM data. When a surveyor exports survey data in IFC format, it can be read by any compliant BIM or GIS platform without proprietary conversion steps.

ISO 19650 is the international standard for managing information over the whole life cycle of a built asset using BIM. It defines how information should be structured, named, and exchanged between project parties.

Adherence to these standards is critical for seamless data exchange between BIM and GIS platforms, ensuring consistent and interoperable outputs that reduce friction in data handoffs. [7] Surveyors who understand and apply these standards become trusted data custodians within multi-disciplinary project teams.

Practical Challenges That Surveyors Must Navigate

Despite the clear benefits, BIM Integration for Surveyors: Embedding Geospatial Data into Building Information Models is not without its difficulties. Converting BIM data into formats usable in GIS — and vice versa — remains genuinely complex. [3] Common challenges include:

Coordinate system mismatches: BIM models often use local project coordinates while GIS uses national or global datums. Reconciling these requires careful transformation.
Level of detail (LOD) conflicts: GIS typically operates at a city or regional scale, while BIM operates at millimetre precision. Scaling data appropriately in both directions requires expert judgement.
Semantic data loss: When converting between formats, attribute data (such as material specifications or structural properties) can be lost or corrupted.
Workflow fragmentation: Different project parties may use incompatible software versions or non-standard naming conventions, breaking automated data pipelines.

Addressing these challenges requires surveyors to invest in both technical training and clear project information management protocols from day one.

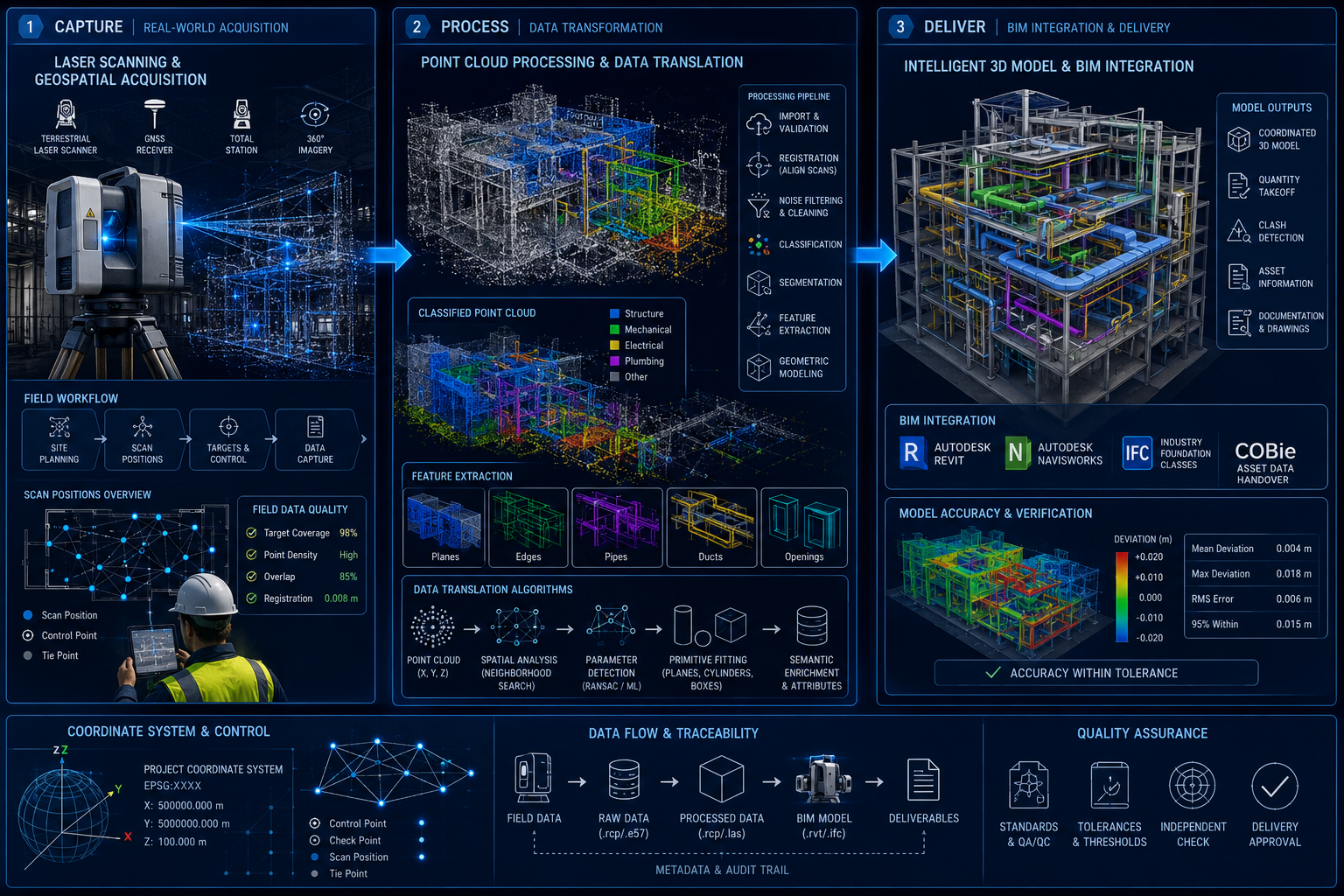

How Surveyors Are Driving Collaboration Across Project Teams

The Surveyor as Spatial Data Custodian

The most effective BIM integration projects in 2026 share a common feature: the surveyor is involved from the earliest stage, not brought in as an afterthought. When surveyors establish the geospatial framework at the outset — defining control points, setting coordinate systems, and agreeing data exchange protocols — every subsequent contributor works from a consistent spatial foundation.

This positions the surveyor not merely as a data collector but as a spatial data custodian responsible for the integrity of the entire model's geographic grounding. In this role, surveyors collaborate directly with:

Architects, who need accurate existing conditions data to design extensions or alterations without clashing with neighbouring structures or underground services.
Structural engineers, who rely on precise topographic and geotechnical data to design foundations and retaining structures.
MEP engineers (mechanical, electrical, plumbing), who use georeferenced models to route services without conflicts.
Planning consultants, who submit georeferenced models to local authorities as part of planning applications.

For projects involving shared boundaries or neighbouring properties — areas where boundary dispute resolution is a concern — having a georeferenced BIM model can provide objective, court-admissible evidence of spatial relationships between structures.

Reducing Construction Conflicts Through Integrated Data

The financial case for BIM integration is compelling. Design conflicts that are identified in a federated BIM model before construction begins cost a fraction of what they cost to resolve on site. When geospatial data is embedded accurately, the model reflects not just the proposed design but also the real-world constraints — neighbouring buildings, underground utilities, topographic features — that would otherwise cause surprises during construction.

For commercial property surveyors in London working on complex urban developments, this reduction in conflict translates directly into faster programme delivery and lower contingency costs.

The AEC industry is increasingly recognising the value of integrating BIM and GIS for comprehensive project management, supporting better decision-making, optimised designs, and accelerated project approvals — all contributing to smarter cities and more resilient infrastructure. [6]

Drone Surveys as a Geospatial Data Source

Drone technology has become a practical and cost-effective method for capturing geospatial data at scale. A drone roof survey can capture photogrammetric data that, when processed, produces georeferenced point clouds and orthomosaic maps suitable for direct import into BIM environments. This is particularly useful for:

Capturing existing roof geometry before a proposed extension.
Monitoring construction progress against the BIM design model.
Identifying deviations from the approved design in real time.

When drone data is captured with ground control points tied to a national coordinate system, the resulting dataset integrates seamlessly with both BIM and GIS platforms.

Building the Business Case for Geospatial BIM Integration

Surveyors considering investment in geospatial BIM capabilities should assess the return across several dimensions:

Competitive differentiation: As BIM mandates expand across public sector projects and filter into private development, surveyors who cannot deliver georeferenced BIM outputs will be excluded from an increasing share of the market.

Reduced rework costs: Accurate geospatial data embedded at the survey stage prevents the expensive rework that results from coordinate errors discovered mid-construction.

Expanded service scope: Surveyors with BIM-GIS skills can offer additional services including 4D (time) and 5D (cost) BIM support, digital twin creation, and asset information management.

Regulatory alignment: ISO 19650 compliance and IFC-based data exchange are becoming contractual requirements on major projects. Surveyors who already operate within these frameworks have a clear advantage.

For firms providing chartered surveyor services in London and across the wider South East, the investment in geospatial BIM capability is increasingly a prerequisite for working on the most technically demanding and commercially significant projects.

Conclusion

BIM Integration for Surveyors: Embedding Geospatial Data into Building Information Models is no longer an emerging trend — it is the operational standard that the construction industry is converging on in 2026. Surveyors who master georeferencing techniques, understand IFC and ISO 19650 standards, and can work fluently within platforms like ArcGIS GeoBIM and Autodesk Construction Cloud are positioned to lead multi-disciplinary project teams rather than simply supply data to them.

Actionable next steps for surveying practices:

Audit current survey workflows to identify where geospatial data is being captured but not embedded into BIM-compatible formats.
Invest in GNSS and LiDAR equipment capable of producing point clouds that meet BIM LOD requirements.
Train technical staff in IFC export workflows and ISO 19650 information management protocols.
Establish a BIM Execution Plan template that defines coordinate systems, data exchange formats, and naming conventions at project outset.
Explore cloud-based BIM platforms to enable real-time collaboration with architects, engineers, and planning consultants.
Engage with drone survey capabilities to capture large-site geospatial data efficiently and cost-effectively.

The surveyors who act on these steps now will define the quality benchmark for geospatial BIM integration in the years ahead.
